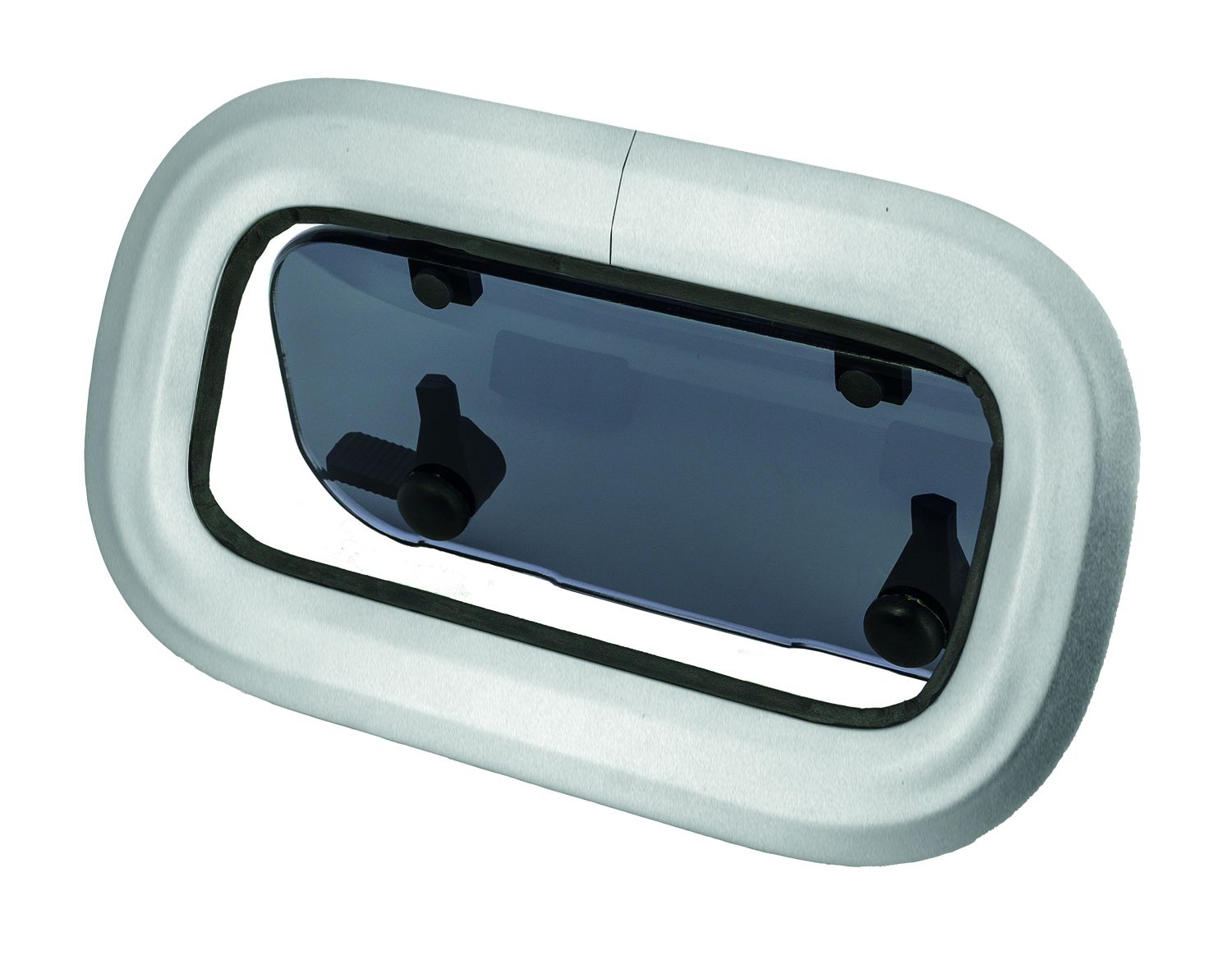

PA Porthole
SKU: PA4116
Shallow aluminum frame. “Smoke” coloured opening pane.
Description
VETUS expands the selection of portholes with the low profile PA series. Originated as special request item in APAC and USA, we have updated these portholes and included them in our regular stock. The ergonomic handels are easy to open and close and with the additional interior trim you can have the same level of finish as our other products. PA4116 has the following specifications: External dimensions A x B (mm): 425 x 180 Cut-out dimensions C x D (mm): 407 x 162 Cut-out radius R (mm): 57
Specifications
Material | Aluminium |
Type mosquito screen | WSP02K |
CE mark | AIII |
Shape | Square |
Opening pane | Unframed |
Length (inches) | 16 7/8 |
Height (inches) | 7 1/8 |
Cut-out radius (inches) | 2 1/4 |
Cut-out height (inch) | 6 3/8 |
Cut-out length (inch) | 16 1/16 |
Height (mm) | 180 |
Cut-out radius (mm) | 57 |
Length (m) | 425 |
Cut-out height (mm) | 162 |
Cut-out length (mm) | 407 |
